高防水级浪管接头 |
|
|
|
|
|
|
|
|
|
|
|
|
螺牙规格:公制牙（Metric),PG牙,G牙

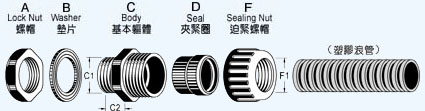

产品材质：A.C.F部位均采用UL认可之尼龙66(PA66)原料制成(防火等级UL94V-2),B及D部分采用EPDM耐候橡胶制成。
颜色种类:灰白色,黑色,.
防护等级:IP68（在规定的适用塑胶浪管规格）
工作温度:-40℃到+100℃。
产品特性:特殊夹紧爪与夹紧圈相扣之设计,配合迫紧螺帽装配省时便利,抗拉力特强,可防水,防尘,抗盐,耐酸碱,酒精,油,脂及一般溶剂.
可结合自1/4″到3″塑胶浪管配合使用。
|
|
| |
| 螺牙规格 |
产品编号 |
适合塑胶浪管规格 |
螺纹外径(C1) |
机板口径 |
螺纹长度（C2） |
包装 |
| 黑色（Black) |
灰色(Gray) |
| M12×1.5 |
N-MGW12-10B |
N-MGW12-10G |
PA/PE10 0-
6.5 |
1/4″ |
12 |
12～12.3 |
9 |
50pcs |
| M16×1.5 |
N-MGW16-13B |
N-MGW16-13G
|
PA/PE13
0-0010 |
5/16″ |
16 |
16～16.3 |
15 |
| N-MGW16-15B |
N-MGW16-15G |
PA/PE15.8
- 12 |
3/8″ |
| M20×1.5 |
N-MGW20-15B
|
N-MGW20-15G |
PA/PE15.8
- 12 |
3/8″ |
20 |
20～20.3 |
15 |
| N-MGW20-18B |
N-MGW20-18G |
PA/PE18.5-14.3 |
-- |
| N-MGW20-21B |
N-MGW20-21G |
PA/PE21.2
- 17 |
1/2″ |
| M25×1.5 |
N-MGW25-21B |
N-MGW25-21G |
PA/PE21.2
- 17 |
1/2″ |
25 |
25～25.4 |
15 |
| N-MGW25-25B |
N-MGW25-25G |
PA/PE25.2
- 20 |
-- |
| N-MGW25-28B |
N-MGW25-28G |
PA/PE28.5
- 23 |
3/4″ |
| M32×1.5 |
N-MGW32-34B |
N-MGW32-34G |
PA/PE34.5
- 29 |
1″ |
32 |
32～32.4 |
15 |
10pcs |
| M40×1.5 |
N-MGW40-42B |
N-MGW40-42G |
PA/PE42.5
- 36 |
1 1/4″ |
40 |
40～40.4 |
15 |
| M63×1.5 |
N-MGW63-54B |
N-MGW63-54G |
PA/PE54.5
- 48 |
2″ |
63 |
63～63.4 |
25 |
|
M90×2.0 |
N-MGW90-88B |
N-MGW90-88G |
PA/PE890
- 080 |
3″ |
90 |
90～91 |
25 |
2pcs |
| G1/4 |
N-FGW13-10B |
N-FGW13-10G |
PA/PE10
0- 6.5 |
1/4″ |
13.1 |
12.5～12.8 |
9 |
50pcs |
| G3/8 |
N-FGW17-13B |
N-FGW17-13G |
PA/PE13
0-0010 |
5/16″ |
16.6 |
16.6～16.9 |
10 |
| G1/2
|
N-FGW21-15B |
N-FGW21-15G |
PA/PE15.8
- 12 |
3/8″ |
20.9 |
20.9～21.2 |
10 |
| N-FGW21-18B |
N-FGW21-18G |
PA/PE18.5-14.3 |
-- |
20.9 |
20.9～21.2 |
10 |
| N-FGW21-21B |
N-FGW21-21G |
PA/PE21.2
- 17 |
1/2″ |
20.9 |
20.9～21.2 |
10 |
| N-FGW21H-15B |
N-FGW21H-15G |
PA/PE15.8
- 12 |
3/8″ |
20.9 |
20.9～21.2 |
15 |
| N-FGW21H-18B |
N-FGW21H-18G |
PA/PE18.5-14.3 |
-- |
20.9 |
20.9～21.2 |
15 |
| N-FGW21H-21B |
N-FGW21H-21G |
PA/PE21.2
- 17 |
1/2″ |
20.9 |
20.9～21.2 |
15 |
| G3/4 |
N-FGW26-21B |
N-FGW26-21G |
PA/PE21.2
- 17 |
1/2″ |
26.4 |
26.4～26.8 |
15 |
| N-FGW26-25B |
N-FGW26-25G |
PA/PE25.2
- 20 |
-- |
26.4 |
26.4～26.8 |
15 |
| N-FGW26-28B |
N-FGW26-28G |
PA/PE28.5
- 23 |
3/4″ |
26.4 |
26.4～26.8 |
15 |
| G1 |
N-FGW33-34B |
N-FGW33-34B |
PA/PE34.5
- 29 |
1″ |
33.2 |
33.2～33.6 |
15 |
| G1 1/4 |
N-FGW42-42B |
N-FGW42-42G |
PA/PE42.5
- 36 |
1 1/4″ |
41.9 |
41.9～42.3 |
20 |
10pcs |
| 2 |
N-FGW60-54B |
N-FGW60-54G |
PA/PE54.5
- 48 |
2″ |
60 |
60～60.4 |
20 |
| 3 |
N-FGW88-88B |
N-FGW88-88G |
PA/PE890
- 080 |
3″ |
88 |
88～89 |
25 |
2pcs |
| PG7 |
N-PGW7-10B |
N-PGW7-10G |
PA/PE10
0- 6.5 |
1/4″ |
12.5 |
12.5～12.8 |
9 |
50pcs |
PG9 |
N-PGW9-10B |
N-PGW9-10G |
PA/PE10
0- 6.5 |
1/4″ |
15.2 |
15.2～15.5 |
9 |
| PG11 |
N-PGW11-13B |
N-PGW11-13B |
PA/PE13
0-0010 |
5/16″ |
18.6 |
18.6～18.9 |
10 |
| N-PGW11-15B |
N-PGW11-15G |
PA/PE15.8
- 12 |
3/8″ |
18.6 |
18.6～18.9 |
10 |
| N-PGW11-18B |
N-PGW11-18G |
PA/PE18.5-14.3 |
-- |
18.6 |
18.6～18.9 |
10 |
PG13.5 |
N-PGW13.5-15B |
N-PGW13.5-15G |
PA/PE15.8
- 12 |
3/8″ |
20.4 |
20.4～20.7 |
10 |
| N-PGW13.5-18B |
N-PGW13.5-18G |
PA/PE18.5-14.3 |
-- |
20.4 |
20.4～20.7 |
10 |
| PG16
|
N-PGW16-15B |
N-PGW16-15G |
PA/PE15.8
- 12 |
3/8″ |
22.5 |
22.5～22.8 |
10 |
| N-PGW16-18B |
N-PGW16-18G |
PA/PE18.5-14.3 |
-- |
22.5 |
22.5～22.8 |
10 |
| N-PGW16-21B |
N-PGW16-21G |
PA/PE21.2
- 17 |
1/2″ |
22.5 |
22.5～22.8 |
13 |
PG21
|
N-PGW21-21B |
N-PGW21-21G |
PA/PE21.2
- 17 |
1/2″ |
28.3 |
28.3～28.7 |
13 |
10pcs |
| N-PGW21-25B |
N-PGW21-25G |
PA/PE25.2
- 20 |
-- |
28.3 |
28.3～28.7 |
13 |
N-PGW21-28B |
N-PGW21-28G |
PA/PE28.5
- 23 |
3/4″ |
28.3 |
28.3～28.7 |
13 |
| PG29 |
N-PGW29-34B |
N-PGW29-34G |
PA/PE34.5
- 29 |
1″ |
37 |
37～37.4 |
13 |
PG36 |
N-PGW36-42B |
N-PGW36-42G |
PA/PE42.5
- 36 |
1 1/4″ |
47 |
47～47.4 |
13 |
| PG48
|
N-PGW48-54B
|
N-PGW48-54G
|
PA/PE54.5
- 48
|
2″ |
59.3 |
59.3～60.2
|
16
|
| 备注： |
如对产品技术有特殊要求请来电说明，我们将竭诚为您提供最合理的解决方案。 |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
 |
